Homeothermic Monitoring System
Description:

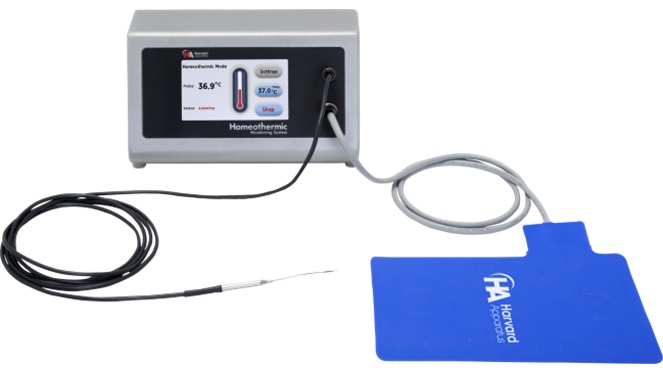

The body temperature monitoring system is a closed-loop temperature control system for small rodents. It provides heat input via a heating pad, precisely controlling the animal's core body temperature. The system includes a control unit, a flexible rectal probe, a standard-sized heating pad (12 x 20.5 cm), and an insulating pad.
Featuring an easy-to-use touchscreen and heating pads of various sizes, it can meet all your surgical needs. The thermostat body temperature monitoring system is perfect for use in small rodent anesthesia experiments in any laboratory.
-
55-7020
Temperature Range: 20 to 50°C
Resolution: 0.1°C
Integrated Temperature Sensor: Yes
Temperature Stability: +/-0.1°C
Temperature Display: User selectable °C and °F
Heating Pad Material: Silicone
Heating Pad Dimensions: 12.0 x 20.5 cm
Probe: Flexible rectal probe
Probe Shaft Length: 100 mm
Probe Diameter: 1.6 mm
Probe Shaft Diameter: 1.6 mm
Display Information: Current Body Temperature (Rectal Temperature and Set Temperature)
Serial Communication: RS-485
Analog Output: 0 to 5 V, 20 to 50°C
Analog Input: 0 to 5 V, 20 to 50°C
Dimensions: 12.0 x 22.6 x 15.8 cm
Weight: 0.68 kg
Power: 100 to 240 VAC, 50/60 Hz
Regulatory Authorities: CE, ETL (UL, CSA), WEEE, EU RoHS
Warranty period: 1 year
-
Specification55-7020
Temperature Range: 20 to 50°C
Resolution: 0.1°C
Integrated Temperature Sensor: Yes
Temperature Stability: +/-0.1°C
Temperature Display: User selectable °C and °F
Heating Pad Material: Silicone
Heating Pad Dimensions: 12.0 x 20.5 cm
Probe: Flexible rectal probe
Probe Shaft Length: 100 mm
Probe Diameter: 1.6 mm
Probe Shaft Diameter: 1.6 mm
Display Information: Current Body Temperature (Rectal Temperature and Set Temperature)
Serial Communication: RS-485
Analog Output: 0 to 5 V, 20 to 50°C
Analog Input: 0 to 5 V, 20 to 50°C
Dimensions: 12.0 x 22.6 x 15.8 cm
Weight: 0.68 kg
Power: 100 to 240 VAC, 50/60 Hz
Regulatory Authorities: CE, ETL (UL, CSA), WEEE, EU RoHS
Warranty period: 1 year
